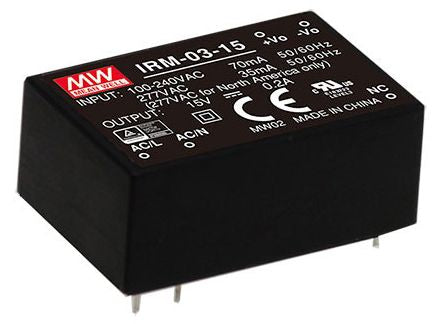

Mean Well, 3W Encapsulated Switch Mode Power Supply, 15V dc, Encapsulated [IRM-03-15]; 135-8914
by Mean Well
0₫
Mã kho: 1358914
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15 V dc |
| Output Current | 200mA |
| Power Rating | 3W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 305 V ac, 120 → 430 V dc |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 37mm |
| Width | 24mm |
| Depth | 15mm |
| Weight | 20g |
| Efficiency | 0.78 |
| Maximum Temperature | +85°C |
| Minimum Temperature | -30°C |
