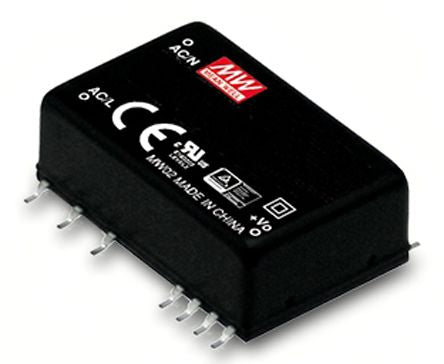

Mean Well, 1W Encapsulated Switch Mode Power Supply, 12V dc, Encapsulated [IRM-01-12SMD]; 135-9268
by Mean Well
0₫
Mã kho: 1359268
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12 V dc |
| Output Current | 83mA |
| Power Rating | 1W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 305 V ac, 120 → 430 V dc |
| Mounting Type | Surface Mount |
| Package Type | Encapsulated |
| Length | 33.7mm |
| Width | 22.2mm |
| Depth | 16mm |
| Weight | 19g |
| Efficiency | 0.74 |
| Maximum Temperature | +85°C |
| Minimum Temperature | -30°C |
