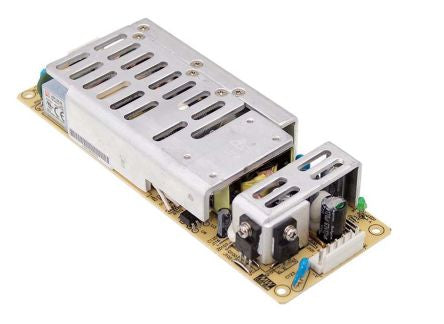

Mean Well, 150W Embedded Switch Mode Power Supply SMPS, 20V dc, Open Frame [ASP-150-20]; 678-3720
by Mean Well
0₫
Mã kho: 6783720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 20 V dc |
| Output Current | 7.5A |
| Power Rating | 150W |
| Number of Outputs | 1 |
| Input Voltage | 90 → 264 V ac, 127 → 370 V dc |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 169mm |
| Width | 60.7mm |
| Depth | 28.5mm |
| Weight | 320g |
| Efficiency | 0.9 |
| Maximum Temperature | +60°C |
| Minimum Temperature | -20°C |
