RS PRO 5 Core 2.5 mm² Mains Power Cable, Black CPE Sheath 100m, 25 A 450 V, 750 V, H07RN-F; 773-9089
by RS PRO
0₫
Mã kho: 7739089
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|

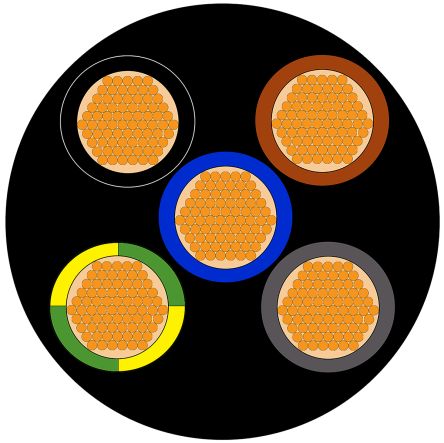

| Number of Cores | 5 |
| Cross Sectional Area | 2.5 mm² |
| Sheath Colour | Black |
| Current Rating | 25 A |
| Length | 100m |
| Voltage Rating | 450 V, 750 V |
| Outer Diameter | 14.4mm |
| Sheath Material | CPE |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H07RN-F |
| Fire Behaviour | Flame Retardant |
| Insulation Material | EPR |
| Conductor Resistance | 7.98 Ω/km |
| Number of Strands | 49 |
| Standards Met | Euroclass Eca |
| American Wire Gauge | 13 AWG |
| Core Strands | 49/0.24 mm |
| Size of Strands | 0.25 mm |
| Conductor Material | Copper |
