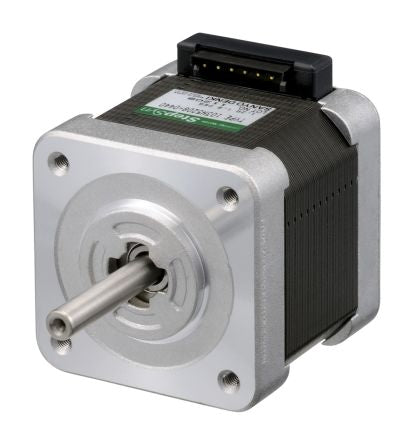

Sanyo Denki Unipolar Bipolar, Unipolar Stepper Motor 1.8°, 0.30Nm, 24 V dc, 1.2 A, 6 Wires [103H5208-0410]; 878-7752
by Sanyo Denki
0₫
Mã kho: 8787752
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Step Angle | 1.8° |
| Holding Torque | 0.30Nm |
| Number Of Wires | 6 |
| Voltage Rating | 24 V dc |
| Frame Size | 42 x 42mm |
| Stepper Motor Type | Bipolar, Unipolar |
| Shaft Diameter | 5mm |
| Current Rating | 1.2 A |
| Winding Arrangement | Unipolar |
| Shaft Length | 22.5mm |
| Depth | 40.5mm |
| Resistance Per Phase | 2.9Ω |
| Standards Met | CE, CULus, RoHS Compliant, TUV |
| Series | 103H5 |
