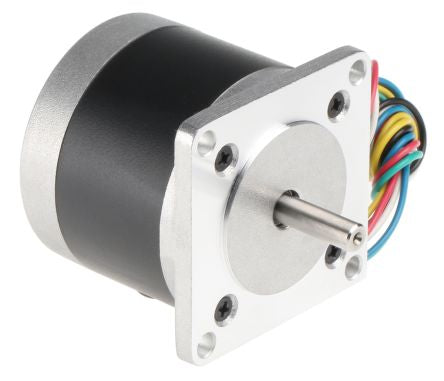

RS PRO Unipolar Hybrid Stepper Motor 1.8°, 6 V, 850 mA, 6 Wires; 180-5282
by RS PRO
0₫
Mã kho: 1805282
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Step Angle | 1.8° |
| Number Of Wires | 6 |
| Voltage Rating | 6 V |
| Frame Size | 56.4 x 56.4mm |
| Stepper Motor Type | Hybrid |
| Shaft Diameter | 6.35mm |
| Current Rating | 850 mA |
| Winding Arrangement | Unipolar |
| Shaft Length | 19mm |
| Depth | 51mm |
| Resistance Per Phase | 7.1Ω |
