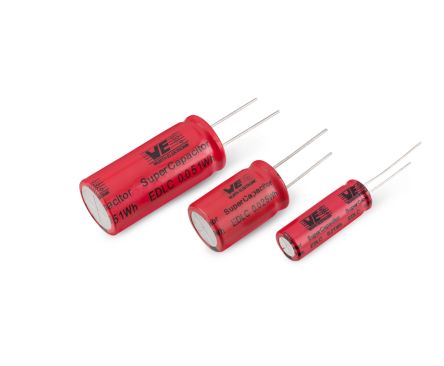

Wurth Elektronik 25F Supercapacitor EDLC -10 → +30% Tolerance WCAP-STSC Series 2.7V dc Through Hole [850617022001]; 185-5125
0₫
Mã kho: 1855125
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 25 F |
| Voltage | 2.7 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +65°C |
| Diameter | 16mm |
| Height | 25mm |
| Dimensions | 16 Dia. x 25mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 68 μA |
| Equivalent Series Resistance | 25mΩ |
| Series | WCAP-STSC |
| Tolerance | -10 → +30% |
| Capacitor Family | Supercapacitor |
| Dielectric Material Family | Electrical Double Layer |
| Product Diameter | 16mm |
| Lead Spacing | 7.5 mm |
| Tolerance Minus | -0.1 |
| Terminal Type | Solder |
| Lead Diameter | 0.8mm |
| Tolerance Plus | 0.3 |
