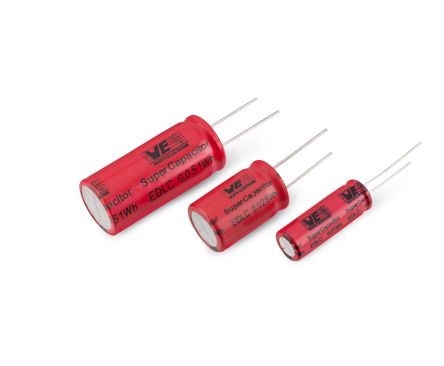

Wurth Elektronik 7F Supercapacitor EDLC -10 → +30% Tolerance WCAP-STSC Series 2.7V dc Through Hole [850617021002]; 185-5122
0₫
Mã kho: 1855122
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 7 F |
| Voltage | 2.7 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +65°C |
| Diameter | 10mm |
| Height | 20mm |
| Dimensions | 10 Dia. x 20mm |
| Lead Pitch | 5mm |
| Leakage Current | 20 μA |
| Equivalent Series Resistance | 45mΩ |
| Series | WCAP-STSC |
| Tolerance | -10 → +30% |
| Terminal Type | Solder |
| Lead Spacing | 5 mm |
| Tolerance Minus | -0.1 |
| Capacitor Family | Supercapacitor |
| Lead Diameter | 0.6mm |
| Product Diameter | 10mm |
| Dielectric Material Family | Electrical Double Layer |
| Tolerance Plus | 0.3 |
