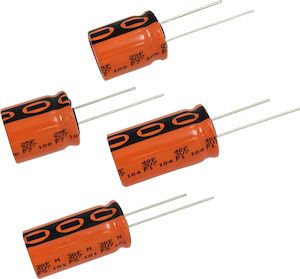

Vishay 40F Supercapacitor EDLC -20 %, +50 % Tolerance 225 EDLC-R Series 2.7V Through Hole [MAL222591001E3]; 175-3513
by Vishay
0₫
Mã kho: 1753513
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 40 F |
| Voltage | 2.7 V |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Diameter | 18.5mm |
| Automotive Standard | AEC-Q200 |
| Height | 33.5mm |
| Dimensions | 18.5 Dia. x 33.5mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 20 mA |
| Equivalent Series Resistance | 18mΩ |
| Lifetime | 2000h |
| Series | 225 EDLC-R |
| Tolerance | -20 %, +50 % |
| Package/Case | 1831 |
| Polarised | Polar |
| Product Diameter | 18.5mm |
| Terminal Type | Radial |
| Tolerance Minus | -0.2 |
| Capacitor Family | Electric Double Layer |
| Lead Diameter | 0.8mm |
| Tolerance Plus | 0.5 |
