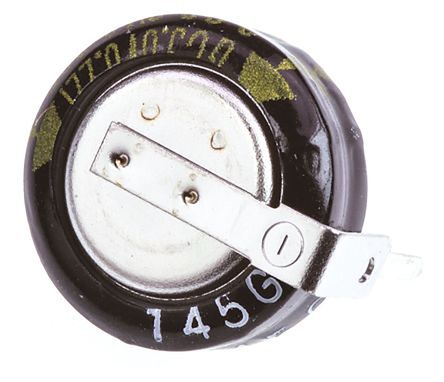

Panasonic 0.47F Supercapacitor EDLC -20 → +150% Tolerance SG Series 5.5V dc Through Hole [EECS5R5H474N]; 869-0774
by Panasonic
0₫
Mã kho: 8690774
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 0.47 F |
| Voltage | 5.5 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Diameter | 19mm |
| Height | 6.5mm |
| Dimensions | 19 (Dia.) x 6.5mm |
| Lead Pitch | 20mm |
| Leakage Current | 1 mA |
| Lifetime | 1000h |
| Series | SG |
| Tolerance | -20 → +150% |
| Capacitor Family | Electric Double Layer |
| Tolerance Plus | 1.5 |
| Dielectric Material Family | Gold |
| Terminal Type | Radial |
| Lead Diameter | 1 x 0.2mm |
| Product Diameter | 19mm |
| Tolerance Minus | -0.2 |
