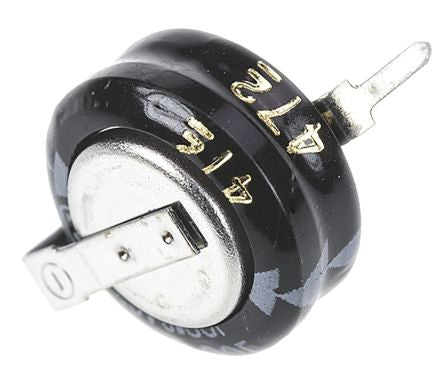

Panasonic 0.33F Supercapacitor EDLC ±30% Tolerance SD Series 5.5V dc Through Hole [EECS0HD334H]; 166-7076
by Panasonic
0₫
Mã kho: 1667076
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 0.33 F |
| Voltage | 5.5 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Diameter | 10.5mm |
| Height | 6.5mm |
| Dimensions | 10.5 x 11.5 x 6.5mm |
| Lead Pitch | 10mm |
| Leakage Current | ≤300 μA |
| Equivalent Series Resistance | ≤75Ω |
| Lifetime | 1000h |
| Series | SD |
| Tolerance | ±30% |
| Lead Diameter | 1.7 x 0.2mm |
| Capacitor Family | Electric Double Layer |
| Product Diameter | 10.5mm |
| Depth | 6.5mm |
| Terminal Type | Radial |
