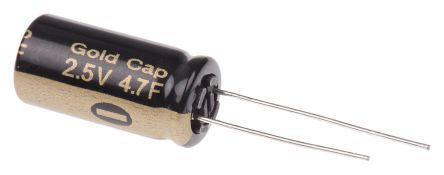

Panasonic 4.7F Supercapacitor EDLC -20 → +40% Tolerance HZ Series 2.5V dc Through Hole [EECHZ0E475]; 727-1091
by Panasonic
0₫
Mã kho: 7271091
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 F |
| Voltage | 2.5 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Diameter | 10mm |
| Height | 20mm |
| Dimensions | 10 (Dia.) x 20mm |
| Lead Pitch | 5mm |
| Lifetime | 1000h |
| Series | HZ |
| Tolerance | -20 → +40% |
| Terminal Type | Through Hole |
| Tolerance Plus | 0.4 |
| Depth | 20mm |
| Capacitor Family | Electric Double Layer |
| Tolerance Minus | -0.2 |
| Product Diameter | 10mm |
| Lead Diameter | 0.6mm |
