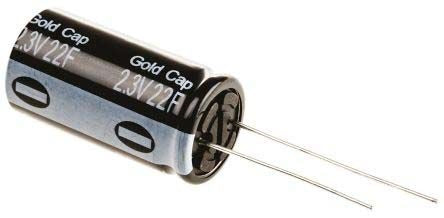

Panasonic 22F Supercapacitor EDLC -20 → +80% Tolerance HW Series 2.3V dc Through Hole [EECHW0D226]; 295-924
by Panasonic
0₫
Mã kho: 295924
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 22 F |
Voltage | 2.3 V dc |
Mounting Type | Through Hole |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +70°C |
Diameter | 18mm |
Height | 35mm |
Dimensions | 18 (Dia.) x 35mm |
Lead Pitch | 7.5mm |
Lifetime | 1000h |
Series | HW |
Tolerance | -20 → +80% |
Tolerance Minus | -0.2 |
Lead Diameter | 0.8mm |
Terminal Type | Through Hole |
Tolerance Plus | 0.4 |
Depth | 35mm |
Capacitor Family | Electric Double Layer |
