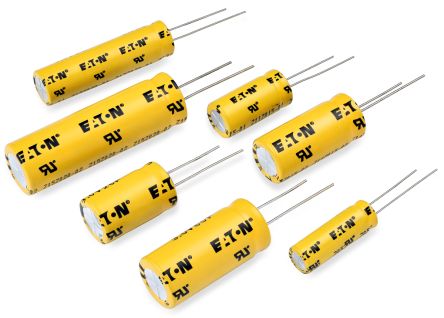

Eaton 34F Supercapacitor EDLC -10 → +30% Tolerance TV Series 3V dc Through Hole [TV1245-3R0346-R]; 135-1094
0₫
Mã kho: 1351094
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 34 F |
Voltage | 3 V dc |
Mounting Type | Through Hole |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +65°C |
Dimensions | 12.9 (Dia.) x 49mm |
Lead Pitch | 5mm |
Leakage Current | 75 μA |
Equivalent Series Resistance | 0.016Ω |
Lifetime | 1000h |
Series | TV |
Tolerance | -10 → +30% |
Depth | 49mm |
Tolerance Minus | -0.1 |
Capacitor Family | Electric Double Layer |
Lead Diameter | 0.6mm |
Terminal Type | Radial |
Tolerance Plus | 0.3 |
Polarised | Polar |
Product Diameter | 12.9mm |
