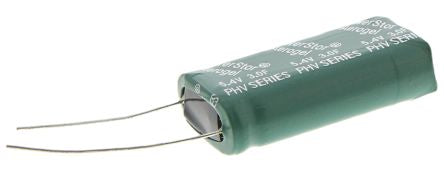

Cooper Bussmann 3F Supercapacitor EDLC -10 → +30% Tolerance Supercap PHV Series 5.4V dc Through Hole [PHV-5R4V305-R]; 763-7845
0₫
Mã kho: 7637845
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3 F |
| Voltage | 5.4 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +65°C |
| Height | 32.5mm |
| Dimensions | 17.3 x 9 x 32.5mm |
| Lead Pitch | 11.8mm |
| Leakage Current | 25 μA |
| Equivalent Series Resistance | 80mΩ |
| Lifetime | 1000h |
| Series | Supercap PHV |
| Tolerance | -10 → +30% |
| Lead Diameter | 0.5mm |
| Terminal Type | Through Hole |
| Capacitor Family | Electric Double Layer |
| Depth | 32.5mm |
| Tolerance Minus | -0.1 |
| Tolerance Plus | 0.3 |
