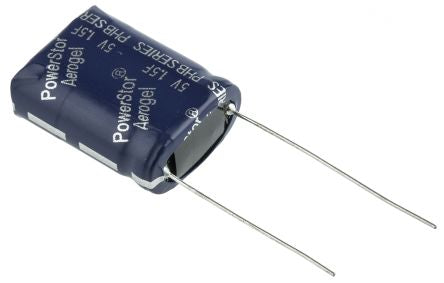

Cooper Bussmann 1.5F Supercapacitor EDLC -10 → +30% Tolerance Supercap PHB Series 5V dc Through Hole [PHB-5R0V155-R]; 169-9475
0₫
Mã kho: 1699475
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 1.5 F |
Voltage | 5 V dc |
Mounting Type | Through Hole |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +70°C |
Height | 22mm |
Dimensions | 17.3 x 9 x 22mm |
Lead Pitch | 11.8mm |
Leakage Current | 10 μA |
Equivalent Series Resistance | 330mΩ |
Lifetime | 1000h |
Series | Supercap PHB |
Tolerance | -10 → +30% |
Capacitor Family | Electric Double Layer |
Tolerance Minus | -0.1 |
Terminal Type | Through Hole |
Depth | 22mm |
Tolerance Plus | 0.3 |
Lead Diameter | 0.5mm |
