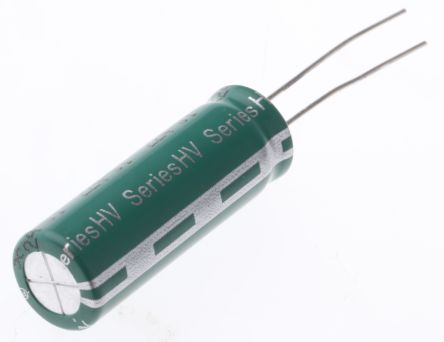

Cooper Bussmann 10F Supercapacitor EDLC -10 → +30% Tolerance Supercap HV Series 2.7V dc Through Hole [HV1030-2R7106-R]; 161-7618
0₫
Mã kho: 1617618
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 F |
| Voltage | 2.7 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +65°C |
| Diameter | 10.5mm |
| Height | 31.5mm |
| Dimensions | 10.5 (Dia.) x 31.5mm |
| Lead Pitch | 5mm |
| Leakage Current | 23 μA |
| Equivalent Series Resistance | 34mΩ |
| Lifetime | 1000h |
| Series | Supercap HV |
| Tolerance | -10 → +30% |
| Lead Diameter | 0.6mm |
| Depth | 31.5mm |
| Tolerance Plus | 0.3 |
| Capacitor Family | Electric Double Layer |
| Tolerance Minus | -0.1 |
| Terminal Type | Through Hole |
