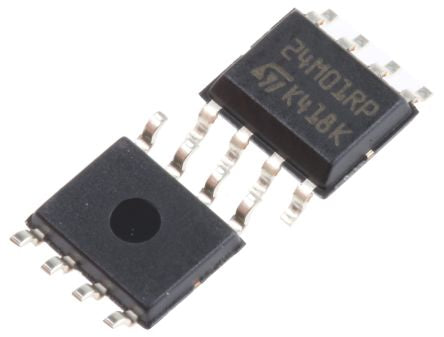

STMicroelectronics M24M01-RMN6TP, 1Mbit Serial EEPROM Memory, 900ns 8-Pin SOIC I2C [M24M01-RMN6TP]; 714-7585
0₫
Mã kho: 7147585
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 1Mbit |
| Interface Type | I2C |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 128 x 8 bit |
| Minimum Operating Supply Voltage | 1.8 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 1.7 → 5.5V |
| Length | 5mm |
| Width | 4mm |
| Height | 1.25mm |
| Dimensions | 5 x 4 x 1.25mm |
| Data Retention | 40yr |
| Maximum Random Access Time | 900ns |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
