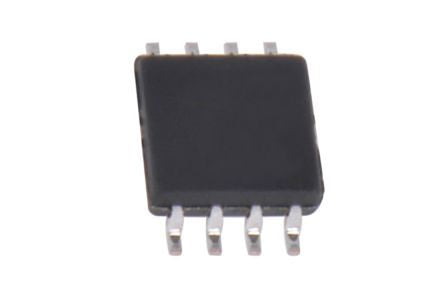

STMicroelectronics, M24M01-DFDW6TP [M24M01-DFDW6TP]; 190-6770
0₫
Mã kho: 1906770
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 1Mbit |
| Interface Type | Serial-I2C |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 128 K x 8 |
| Minimum Operating Supply Voltage | 1.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Number of Bits per Word | 8bit |
| Length | 3.1mm |
| Width | 4.5mm |
| Height | 1.05mm |
| Dimensions | 3.1 x 4.5 x 1.05mm |
| Data Retention | 200yr |
| Minimum Operating Temperature | -40 °C |
| Number of Words | 128 K |
| Maximum Random Access Time | 900ns |
| Maximum Operating Temperature | +85 °C |
