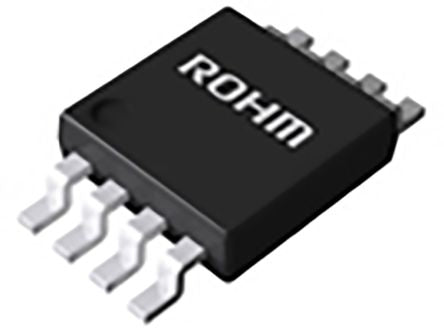

ROHM BR24G128FVJ-3AGTE2, 128kbit EEPROM Memory 8-Pin TSSOP-BJ [BR24G128FVJ-3AGTE2]; 185-0670
by ROHM
0₫
Mã kho: 1850670
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 128kbit |
| Package Type | TSSOP-BJ |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 16K x 8 bit |
| Minimum Operating Supply Voltage | 1.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 1.7 → 5.5V |
| Number of Bits per Word | 8bit |
| Length | 3mm |
| Width | 3mm |
| Height | 0.85mm |
| Dimensions | 3 x 3 x 0.85mm |
| Number of Words | 16K |
| Data Retention | 40yr |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
