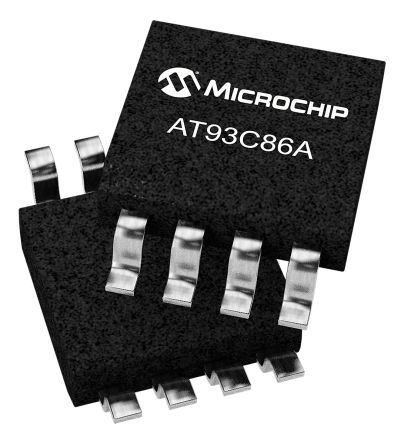

Microchip Technology AT93C86A-10SU-2.7, 16kbit EEPROM Memory 8-Pin SOIC Serial-3 Wire [AT93C86A-10SU-2.7]; 127-8196
by Microchip
0₫
Mã kho: 1278196
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 16kbit |
Interface Type | Serial-3 Wire |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Organisation | 1024 x 16 bit, 2048 x 8 bit |
Minimum Operating Supply Voltage | 2.7 V |
Maximum Operating Supply Voltage | 5.5 V |
Number of Bits per Word | 8 bit, 16 bit |
Length | 4.9mm |
Width | 3.9mm |
Height | 1.5mm |
Dimensions | 4.9 x 3.9 x 1.5mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Number of Words | 1024, 2048 |
Data Retention | 100yr |
