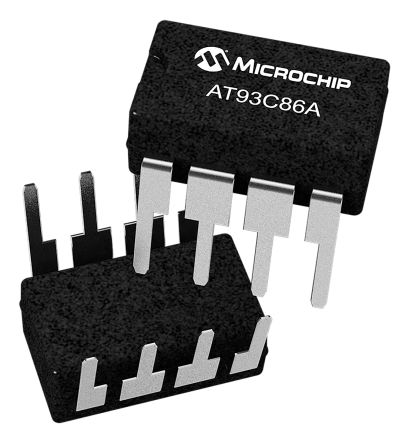

Microchip Technology AT93C86A-10PU-2.7, 16kbit EEPROM Memory 8-Pin PDIP Serial-3 Wire [AT93C86A-10PU-2.7]; 127-8194
by Microchip
0₫
Mã kho: 1278194
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 16kbit |
| Interface Type | Serial-3 Wire |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Organisation | 1024 x 16 bit, 2048 x 8 bit |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Number of Bits per Word | 8 bit, 16 bit |
| Length | 10.16mm |
| Width | 7.11mm |
| Height | 4.95mm |
| Dimensions | 10.16 x 7.11 x 4.95mm |
| Data Retention | 100yr |
| Number of Words | 1024, 2048 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
