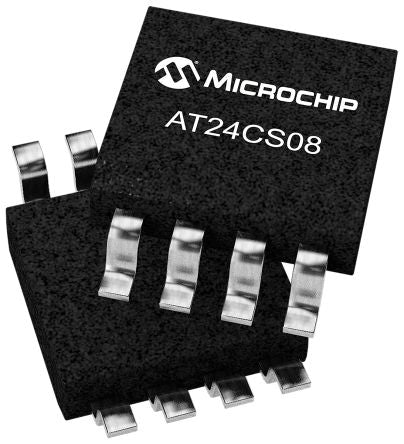

Microchip, 8kbit EEPROM Memory, 0.55μs 8-Pin SOIC Serial-2 Wire [AT24CS08-SSHM-T]; 127-2794
by Microchip
0₫
Mã kho: 1272794
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 8kbit |
| Interface Type | Serial-2 Wire |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 1K x 8 bit |
| Minimum Operating Supply Voltage | 1.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Number of Bits per Word | 8bit |
| Length | 5.05mm |
| Width | 3.99mm |
| Height | 1.5mm |
| Dimensions | 5.05 x 3.99 x 1.5mm |
| Number of Words | 1K |
| Minimum Operating Temperature | -40 °C |
| Maximum Random Access Time | 0.55µs |
| Maximum Operating Temperature | +85 °C |
| Data Retention | 100yr |
