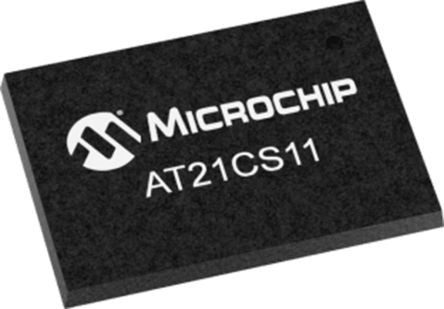

Microchip Technology AT21CS11-MSH10-T, 1kbit EEPROM Chip 2-Pin XSFN Serial-1 Wire [AT21CS11-MSH10-T]; 171-7740
by Microchip
0₫
Mã kho: 1717740
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 1kbit |
| Interface Type | Serial-1 Wire |
| Package Type | XSFN |
| Mounting Type | Surface Mount |
| Pin Count | 2 |
| Organisation | 128 x 8 bit |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 4.5 V |
| Programming Voltage | 4.5V |
| Number of Bits per Word | 8bit |
| Length | 5mm |
| Width | 3.5mm |
| Height | 0.35mm |
| Dimensions | 5 x 3.5 x 0.35mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Words | 128 |
| Data Retention | 100yr |
