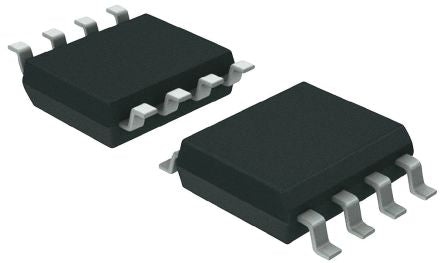

Microchip 24LC512-I/SMG, 512kbit Serial EEPROM Memory, 900ns 8-Pin SOIJ Serial-2 Wire, Serial-I2C [24LC512-I/SMG]; 826-1688
by Microchip
0₫
Mã kho: 8261688
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 512kbit |
| Interface Type | Serial-2 Wire, Serial-I2C |
| Package Type | SOIJ |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 64K x 8 bit |
| Minimum Operating Supply Voltage | 2.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Number of Bits per Word | 8bit |
| Length | 5.38mm |
| Width | 5.33mm |
| Height | 1.98mm |
| Dimensions | 5.38 x 5.33 x 1.98mm |
| Maximum Random Access Time | 900ns |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Data Retention | 200yr |
| Number of Words | 64k |
