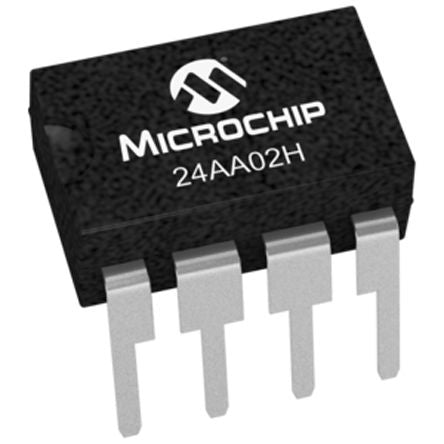

Microchip 24AA02H-I/P, 2kbit EEPROM Memory, 3500ns 8-Pin PDIP Serial-2 Wire [24AA02H-I/P]; 178-4972
by Microchip
0₫
Mã kho: 1784972
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 2kbit |
Interface Type | Serial-2 Wire |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 8 |
Organisation | 256 x 8 bit |
Minimum Operating Supply Voltage | 1.7 V |
Maximum Operating Supply Voltage | 5.5 V |
Number of Bits per Word | 8bit |
Length | 10.16mm |
Width | 0.28in |
Height | 4.95mm |
Dimensions | 0.4 x 0.28 x 0.195in |
Maximum Random Access Time | 3500ns |
Maximum Operating Temperature | +85 °C |
Number of Words | 256 |
Data Retention | 200yr |
Minimum Operating Temperature | -40 °C |
