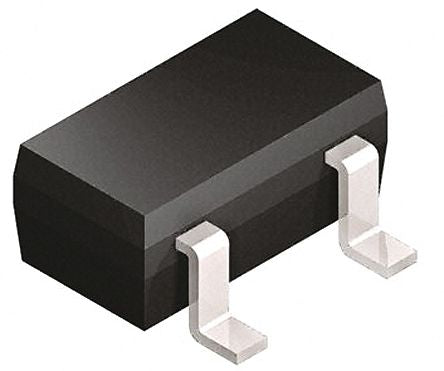

Microchip 11LC010T-I/TT, 1kbit Serial EEPROM Memory, 100ns 3-Pin SOT-23 Serial [11LC010T-I/TT]; 178-5323
by Microchip
0₫
Mã kho: 1785323
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 1kbit |
| Interface Type | Serial |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Organisation | 128 x 8 bit |
| Minimum Operating Supply Voltage | 2.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 2.5 → 5.5V |
| Number of Bits per Word | 8bit |
| Length | 3.05mm |
| Width | 1.4mm |
| Height | 1.02mm |
| Dimensions | 3.05 x 1.4 x 1.02mm |
| Maximum Random Access Time | 100ns |
| Number of Words | 128 |
| Minimum Operating Temperature | -40 °C |
| Data Retention | >200yr |
| Maximum Operating Temperature | +85 °C |
