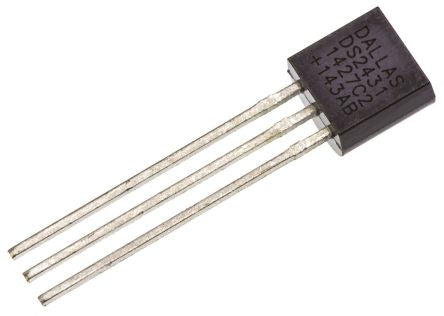

1024 BIT EEPROM MEMORY, 1-WIRE BUS [DS2431+]; 189-9378
0₫
Mã kho: 1899378
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 1kbit |
| Interface Type | Serial-1 Wire |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Organisation | 4 Pages x 256 bit |
| Minimum Operating Supply Voltage | 2.8 V |
| Maximum Operating Supply Voltage | 5.25 V |
| Length | 4.95mm |
| Width | 3.94mm |
| Height | 4.95mm |
| Dimensions | 4.95 x 3.94 x 4.95mm |
| Data Retention | 40yr |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
