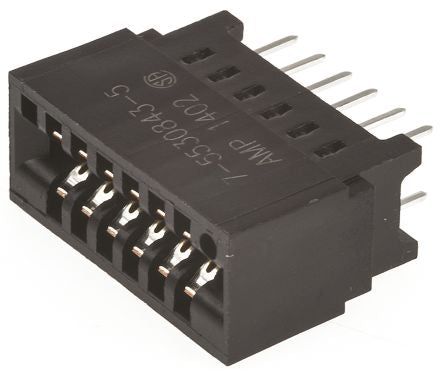

TE Connectivity Female PCB Edge Connector, Through Hole Mount, 12 Way, 2 Row, 2.54mm Pitch, 3A [7-5530843-5]; 164-2660
0₫
Mã kho: 1642660
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Orientation | Straight |
| Gender | Female |
| Number of Contacts | 12 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Contact Material | Phosphor Bronze |
| Current Rating | 3A |
| Voltage Rating | 400 V ac |
| Housing Material | PET |
| Maximum Operating Temperature | +85°C |
| Depth | 9.35mm |
| Minimum Operating Temperature | -55°C |
| Card Type | Dual Edge |
| Width | 15.49mm |
| Length | 21.84mm |
