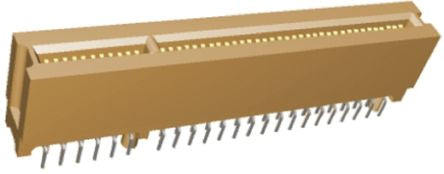

TE Connectivity Female PCB Edge Connector, Through Hole Mount, 90 Way, 2 Row, 1.27mm Pitch, 1A [5650090-2]; 165-0974
0₫
Mã kho: 1650974
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Orientation | Straight |
Gender | Female |
Number of Contacts | 90 |
Number of Rows | 2 |
Pitch | 1.27mm |
Mounting Type | Through Hole |
Termination Method | Solder |
Contact Plating | Gold over Nickel |
Contact Material | Phosphor Bronze |
Current Rating | 1A |
Voltage Rating | 203 V ac |
Housing Material | Thermoplastic |
Length | 65.79mm |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +85°C |
Depth | 8.89mm |
Width | 15.49mm |
Card Type | Dual Edge |
