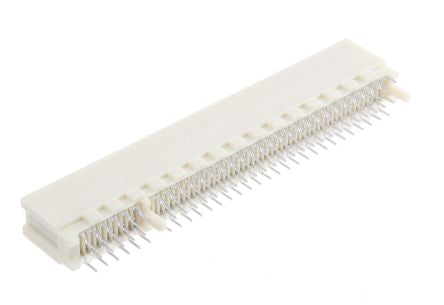

TE Connectivity Female PCB Edge Connector, Through Hole Mount, 120 Way, 2 Row, 1.27mm Pitch, 1A [5145154-4]; 165-0621
0₫
Mã kho: 1650621
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Orientation | Straight |
| Gender | Female |
| Number of Contacts | 120 |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Contact Material | Phosphor Bronze |
| Current Rating | 1A |
| Voltage Rating | 203 V ac |
| Housing Material | Thermoplastic |
| Minimum Operating Temperature | -55°C |
| Length | 84.84mm |
| Maximum Operating Temperature | +85°C |
| Depth | 8.89mm |
| Card Type | PCI |
| Width | 15.49mm |
