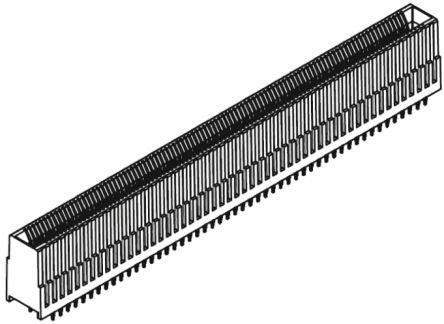

![Molex 76691-1200 7293164](http://nguyenxuong.com/cdn/shop/products/W7293158-01_20925ee1-5592-4262-b427-f580a8c2585d_444x324.jpg?v=1594181109)
Molex EDGELINE Series, Female PCB Edge Connector, Through Hole Mount, 200 Way, 2 Row, 0.8mm Pitch, 1.5A [76691-1200]; 729-3164
by Molex
0₫
Mã kho: 7293164
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Orientation | Straight |
Gender | Female |
Number of Contacts | 200 |
Number of Rows | 2 |
Pitch | 0.8mm |
Mounting Type | Through Hole |
Termination Method | Press-In |
Contact Plating | Gold over Nickel |
Contact Material | Copper Alloy |
Current Rating | 1.5A |
Keying Way | Yes |
Voltage Rating | 250 V ac |
Housing Material | Glass Fibre Reinforced Thermoplastic |
Series | EDGELINE |
Maximum Operating Temperature | +105°C |
Depth | 12.31mm |
Length | 84.2mm |
Series Number | 76691 |
Minimum Operating Temperature | -40°C |
Width | 7.31mm |
