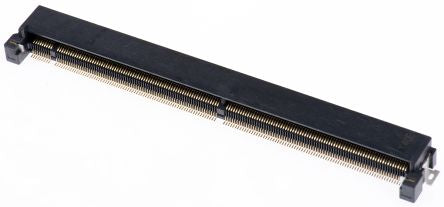

JAE MM70 Series, Female PCB Edge Connector, 310 Way, 0.5mm Pitch, 500mA [MM70-314-310B1-2-R300]; 732-0193
by JAE
0₫
Mã kho: 7320193
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Orientation | Straight |
| Gender | Female |
| Number of Contacts | 310 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Contact Material | Copper Alloy |
| Current Rating | 500mA |
| Keying Way | Yes |
| Series | MM70 |
| Minimum Operating Temperature | -40°C |
| Length | 89.9mm |
| Depth | 6.7mm |
| Maximum Operating Temperature | +80°C |
