![Amphenol FCI 89898-309LF 8599457](http://nguyenxuong.com/cdn/shop/products/R8599457-01_444x439.jpg?v=1594334965)

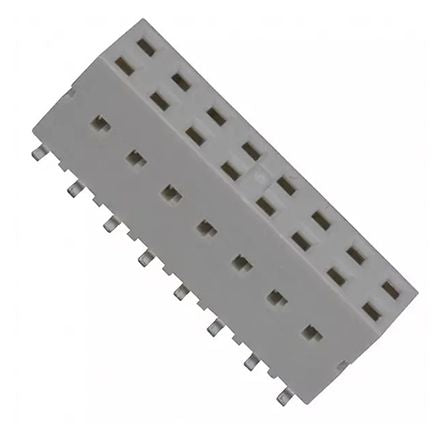

Amphenol FCI Female PCB Edge Connector SMT, 18 Way, 2 Row, 2.54mm Pitch, 2 (Load) A, 3 A [89898-309LF]; 859-9457
by Amphenol FCI
0₫
Mã kho: 8599457
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Orientation | Straight |
Gender | Female |
Number of Contacts | 18 |
Number of Rows | 2 |
Pitch | 2.54mm |
Mounting Type | Surface Mount |
Termination Method | Solder |
Contact Plating | Gold over Nickel |
Contact Material | Phosphor Bronze |
Current Rating | 2 (Load) A, 3 A |
Housing Material | Glass Filled Thermoplastic |
Minimum Operating Temperature | -65°C |
Depth | 8mm |
Maximum Operating Temperature | +125°C |
Length | 45.64mm |
Width | 6mm |
Series Number | 89898 |
