Panduit Heavy Duty Ground "E" Style Conn. 1/0 STR–250 kcmil (70–120mm²), 1/0 STR–250 kcmil (70–120mm²) [GCHE250-250]; PAL629

Name: Panduit Heavy Duty Ground "E" Style Conn. 1/0 STR–250 kcmil (70–120mm²), 1/0 STR–250 kcmil (70–120mm²) [GCHE250-250]; PAL629
Brand: Panduit
SKU: PAL629
Price: 1355400.0 VND
Availability: InStock

by Panduit

1.355.400₫

(Giá chưa VAT).

Mã kho: PAL629

Mã nhà sản xuất: GCHE250-250

Đơn vị tính: FT

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Compression Connectors Covers / E Style Connectors: Panduit GCHE250-250

MÔ TẢ SẢN PHẨM

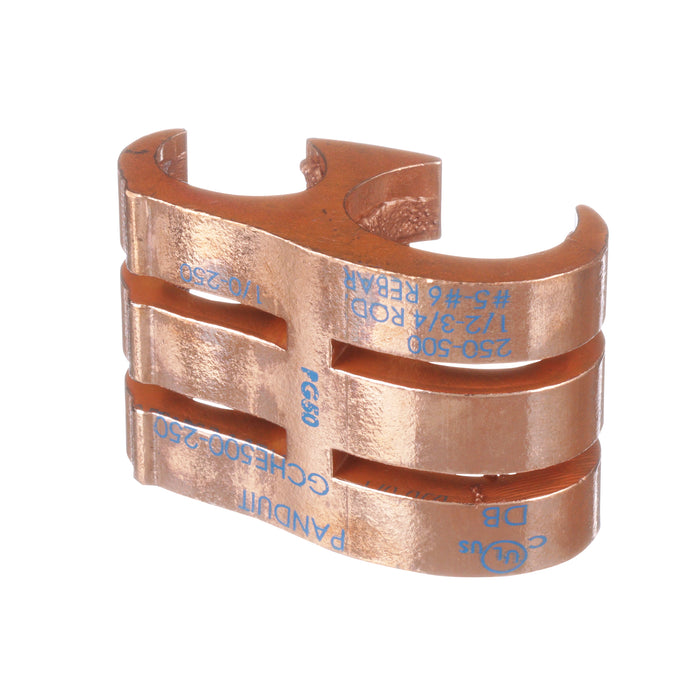

Heavy Duty Ground "E" Style Conn. 1/0 STR–250 kcmil (70–120mm²), 1/0 STR–250 kcmil (70–120mm²)

_THÔNG SỐ KỸ THUẬT:

Note	NA
Sub Brand	NA
Connector Type	E-Style Connector
Overall Length (In.)	1.08
Overall Length (mm)	27.4
Material	High Conductivity Copper
Overall Width (In.)	1.88
Overall Width (mm)	47.6
Overall Height (In.)	2.66
Overall Height (mm)	67.6
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	NA
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	1/0
Minimum Copper Conductor Size (AWG)	NA
Maximum Ground Rod Size (In.)	3/4
Maximum Ground Rod Size (mm)	19.1
Minimum Ground Rod Size (In.)	1/2
Minimum Ground Rod Size (mm)	12.7
Maximum Rebar Size (AWG)	6
Maximum Rebar Size (In.)	3/4
Maximum Rebar Size (mm)	19.1
Minimum Rebar Size (AWG)	3
Minimum Rebar Size (In.)	3/8
Minimum Rebar Size (mm)	9.5
Panduit Die Index Number	PG25
Color Code	Black
Standards Met	cULus Listed to UL 467 for direct burial grounding applications iin earth or concrete. Meets IEEE837-2014 Standard with Enhanced Crimp Process.
Application	Utility/Ground Grid
Product Type	Grounding Heavy Duty E-Tap Grounding Connectors
