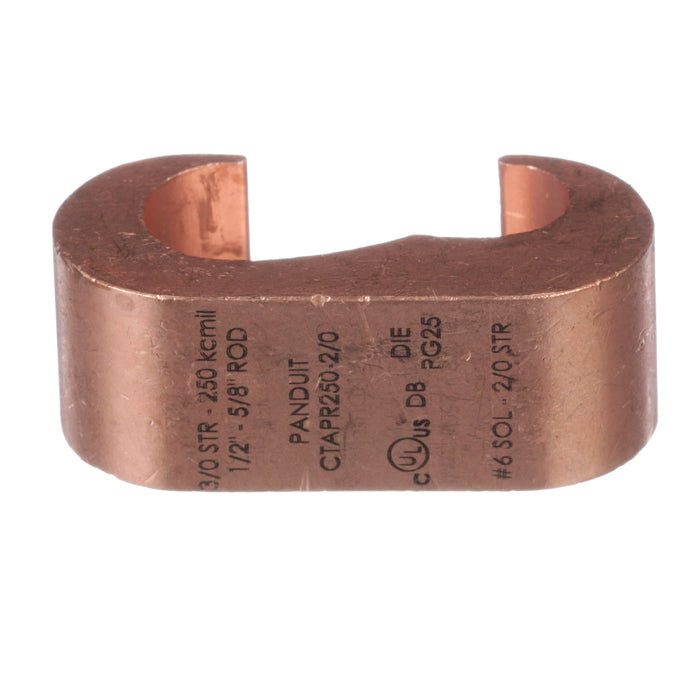

Panduit C-Style CU Comp Conn, 3/0 AWG Str– 250 kcmil, 1/2”- 5/8” Rod (M); 6 AWG Sol–2/0 AWG Str (T) [CTAPR250-2/0-6]; PAK670

Name: Panduit C-Style CU Comp Conn, 3/0 AWG Str– 250 kcmil, 1/2”- 5/8” Rod (M); 6 AWG Sol–2/0 AWG Str (T) [CTAPR250-2/0-6]; PAK670
Brand: Panduit
SKU: PAK670
Price: 652100.0 VND
Availability: InStock

by Panduit

652.100₫

(Giá chưa VAT).

Mã kho: PAK670

Mã nhà sản xuất: CTAPR250-2/0-6

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Compression Connectors Covers / E Style Connectors: Panduit CTAPR250-2/0-6

MÔ TẢ SẢN PHẨM

The CTAPR250-2/0-6 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod applications. UL listed per UL486 for use suitable for dir

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround™
Overall Length (In.)	0.75
Overall Length (mm)	19
Material	High Conductivity Copper
Overall Width (In.)	0.93
Overall Width (mm)	23.6
Overall Height (In.)	1.98
Overall Height (mm)	50.3
Maximum Copper Conductor Size (AWG SOL)	3/0
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG SOL)	6
Minimum Copper Conductor Size (AWG STR)	6
Maximum Ground Rod Size (In.)	5/8
Maximum Ground Rod Size (mm)	15.87
Minimum Ground Rod Size (In.)	1/2
Minimum Ground Rod Size (mm)	12.7
Panduit Die Index Number	PG25
Standards Met	cULus Listed for Direct Burial Grounding Applications to UL467 and Power Applications up to 35kV
Application	Utility/Ground Grid
Product Type	Compression Connectors - Taps
