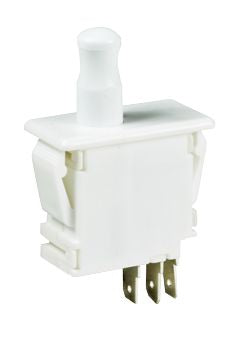

Single Pole Double Throw (SPDT) Door Interlock Push Button Switch, 100 mA @ 125 / 250 V ac [DS1F5BQ3]; 153-3979
by C & K
0₫
Mã kho: 1533979
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | Momentary |
| Contact Current Rating | 100 mA @ 125 / 250 V ac |
| Terminal Type | Quick Connect |
| Actuator Type | Plunger |
| Contact Material | Copper Alloy, Silver Alloy |
| Contact Resistance | 30mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Voltage Rating | 125 / 250V ac |
| Operating Temperature Range | -40 → +85°C |
