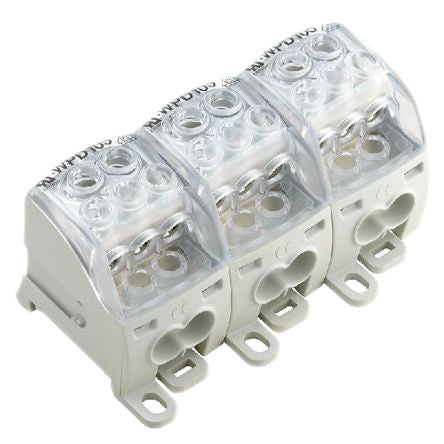

Weidmuller Distribution Block, 16 mm², 25 mm², 35 mm², 15 (Output), 3 (Input) Way, 125A, 1 kV ac/dc, Grey [1562190000]; 138-3488
by Weidmuller
0₫
Mã kho: 1383488
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 3 (Input), 15 (Output) |
| Termination Method | Screw |
| Housing Material | Wemid |
| Current Rating | 125A |
| Voltage Rating | 1 kV ac/dc |
| Cable CSA | 16 mm², 25 mm², 35 mm² |
| Length | 108.3mm |
| Width | 53.7mm |
| Height | 70mm |
| Colour | Grey |
| Maximum Operating Temperature | +130°C |
| Minimum Operating Temperature | -50°C |
