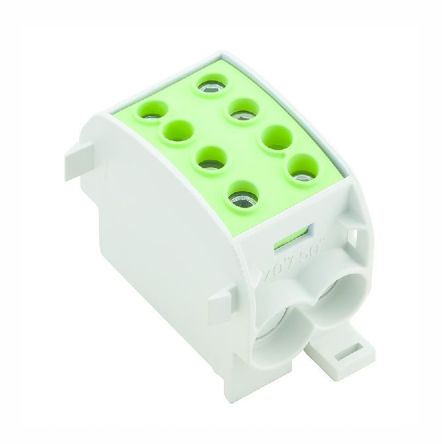

Weidmuller Distribution Block, 50 mm², 70 mm², 2 (Input), 2 (Output) Way, 300 A, 160 (UR) A, 1 kV ac/dc, 600 V, Green [1561790000]; 138-3507
by Weidmuller
0₫
Mã kho: 1383507
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 2 (Input), 2 (Output) |
| Termination Method | Screw |
| Wire Size | 8 AWG |
| Housing Material | Wemid |
| Current Rating | 160 (UR) A, 300 A |
| Voltage Rating | 1 kV ac/dc, 600 V |
| Cable CSA | 50 mm², 70 mm² |
| Length | 32.9mm |
| Width | 53.1mm |
| Height | 63mm |
| Colour | Green |
| Maximum Operating Temperature | +130°C |
| Minimum Operating Temperature | -50°C |
