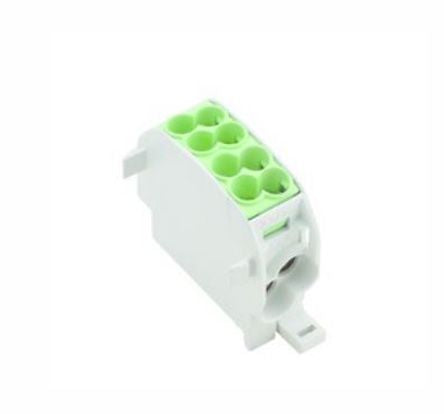

Weidmuller Distribution Block, 16 mm², 25 mm², 2 (Input), 2 (Output) Way, 152 A, 90 (UR) A, 1 kV ac/dc, 600 V, Green [1560650000]; 138-3497
by Weidmuller
0₫
Mã kho: 1383497
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 2 |
| Termination Method | Screw |
| Wire Size | 14 → 4 AWG |
| Housing Material | Wemid |
| Current Rating | 152A |
| Voltage Rating | 1 kV ac/dc, 600 V |
| Cable CSA | 16 mm², 25 mm² |
| Length | 17.8mm |
| Width | 49.3mm |
| Height | 55.7mm |
| Colour | Green |
| Maximum Operating Temperature | +130°C |
| Minimum Operating Temperature | -50°C |
