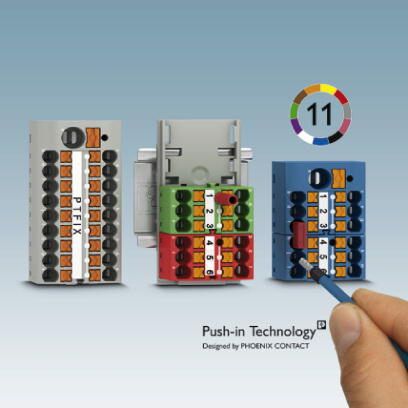

Distribution block - PTFIX 6/12X2,5 BU [3273354]; 187-9905
0₫
Mã kho: 1879905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 13 |
| Termination Method | Push In |
| Wire Size | 26 → 12 (Solid) AWG, 26 → 14 (Flexible) AWG |
| Housing Material | Polyamide |
| Current Rating | 57A |
| Voltage Rating | 450 V |
| Cable CSA | 0.14 → 2.5 (Flexible) mm², 0.14 → 4 (Solid) mm² |
| Length | 28.6mm |
| Width | 41mm |
| Height | 21.7mm |
| Colour | Blue |
