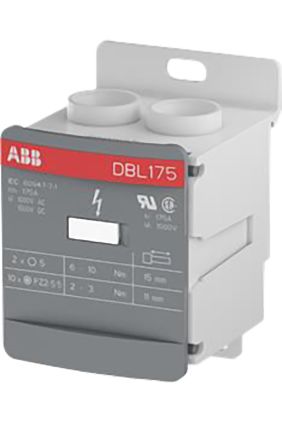

Entrelec Distribution Block, 10 → 70 (End 1) mm², 2.5 → 16 (End 2) mm², 12 Way, 175A, 1 kV ac, 1.5 kV dc [1SNL317510R0000]; 100-3922
by Entrelec
0₫
Mã kho: 1003922
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 12 |
| Termination Method | Screw Down |
| Wire Size | 6 → 2/0 (End 1) AWG, 14 → 6 (End 2) AWG |
| Housing Material | Polyamide |
| IP Rating | IP10 |
| Current Rating | 175A |
| Voltage Rating | 1 kV ac, 1.5 kV dc |
| Cable CSA | 2.5 → 16 (End 2) mm², 10 → 70 (End 1) mm² |
| Length | 46.2mm |
| Width | 52.3mm |
| Height | 72.5mm |
| Colour | Grey |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -55°C |
