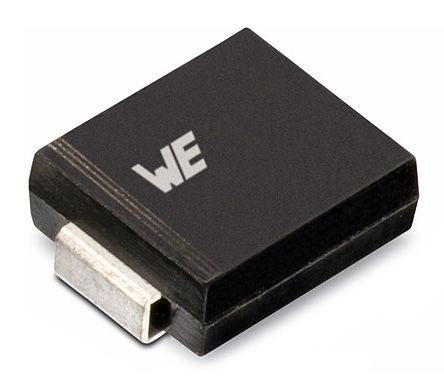

Wurth Elektronik 824551331, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB [824551331]; 921-7096
0₫
Mã kho: 9217096
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 53.3V |
| Minimum Breakdown Voltage | 38.65V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 3000W |
| Maximum Peak Pulse Current | 56.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Test Current | 1mA |
| Width | 5.9mm |
| Height | 2.34mm |
| Length | 6.86mm |
| Maximum Reverse Leakage Current | 2µA |
| Dimensions | 6.86 x 5.9 x 2.34mm |
