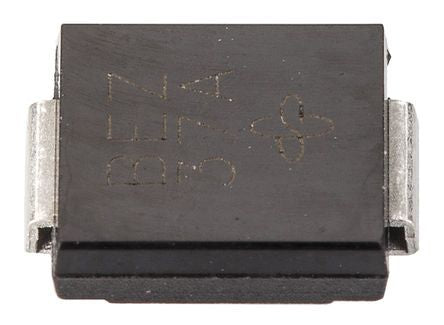

Vishay 1.5SMC6.8A-E3/57T, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB [1.5SMC6.8A-E3/57T]; 145-2761
by Vishay
0₫
Mã kho: 1452761
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 10.5V |
| Minimum Breakdown Voltage | 6.45V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Maximum Reverse Stand-off Voltage | 5.8V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 143A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 6.22mm |
| Test Current | 10mA |
| Maximum Reverse Leakage Current | 1mA |
| Surge Current Rating | 200A |
| Dimensions | 7.11 x 6.22 x 2.62mm |
| Length | 7.11mm |
| Height | 2.62mm |
