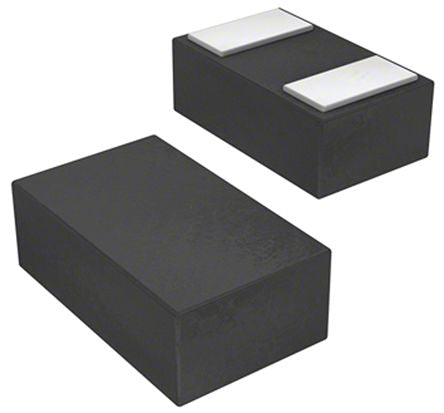

Texas Instruments TPD1E6B06DPLR, Bi-Directional TVS Diode, 50W, 2-Pin X2SON [TPD1E6B06DPLR]; 162-8764
0₫
Mã kho: 1628764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 14V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | X2SON |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 50W |
| Maximum Peak Pulse Current | 3.8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 0.65 x 0.35 x 0.27mm |
| Length | 0.65mm |
| Height | 0.27mm |
| Width | 0.35mm |
| Test Current | 1mA |
