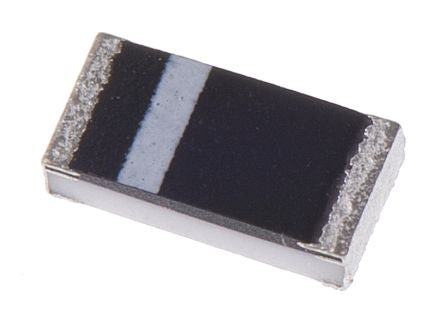

Taiwan Semi 100V 150mA, Diode, 2-Pin 1206 TS4148 RXG [TS4148 RXG]; 652-6003
0₫
Mã kho: 6526003
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Package Type | 1206 |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop | 1V |
| Pin Count | 2 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +200 °C |
| Length | 3.4mm |
| Width | 1.7mm |
| Height | 0.95mm |
| Dimensions | 0.95 x 3.4 x 1.7mm |
