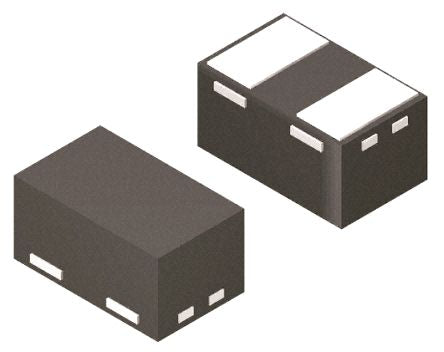

STMicroelectronics ESDAVLC8-1BT2, Bi-Directional TVS Diode, 30W, 2-Pin SOD-882T [ESDAVLC8-1BT2]; 829-0309
0₫
Mã kho: 8290309
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage | 14.5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-882T |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 30W |
| Maximum Peak Pulse Current | 1.3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 50nA |
| Height | 0.35mm |
| Width | 0.65mm |
| Dimensions | 1.05 x 0.65 x 0.35mm |
| Length | 1.05mm |
