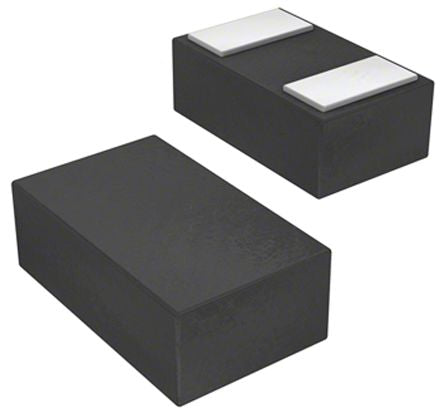

STMicroelectronics ESDA17P50-1U1M, Uni-Directional TVS Diode, 1200W, 2-Pin QFN [ESDA17P50-1U1M]; 163-7315
0₫
Mã kho: 1637315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 26.5V |
| Minimum Breakdown Voltage | 15.6V |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1200W |
| Maximum Peak Pulse Current | 46A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 50nA |
| Dimensions | 1.6 x 1 x 0.55mm |
| Height | 0.55mm |
| Width | 1mm |
| Length | 1.6mm |
