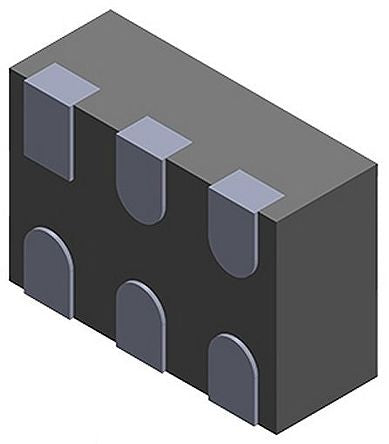

STMicroelectronics DVIULC6-2M6, Dual Uni-Directional ESD Protection Array, 6-Pin μQFN [DVIULC6-2M6]; 165-5530
0₫
Mã kho: 1655530
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Maximum Clamping Voltage | 17V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | μQFN |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 6 |
| Maximum Peak Pulse Current | 5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Maximum Operating Temperature | +125 °C |
| Capacitance | 0.85pF |
| Length | 1.45mm |
| Height | 0.55mm |
| Width | 1mm |
| Maximum Reverse Leakage Current | 500nA |
| Dimensions | 1.45 x 1 x 0.55mm |
