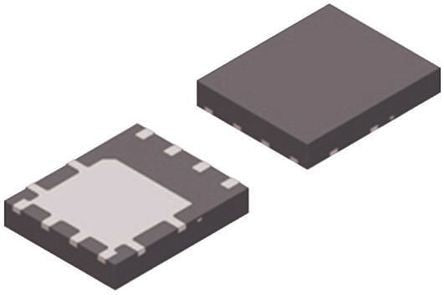

FDMC2514SDC N-Channel MOSFET, 106 A, 25 V PowerTrench, SyncFET, 8-Pin PQFN ON Semiconductor [FDMC2514SDC]; 166-2577
0₫
Mã kho: 1662577
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 106 A |
Maximum Drain Source Voltage | 25 V |
Package Type | PQFN |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 4.7 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 60 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Length | 3.3mm |
Typical Gate Charge @ Vgs | 31 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Series | PowerTrench, SyncFET |
Width | 3.3mm |
Height | 0.95mm |
